Baking Soda Grinder

In the world of food processing and manufacturing, precision and consistency are of utmost importance. One essential tool in achieving these qualities is the Baking Soda Grinder, a versatile piece of machinery that plays a critical role in various industries. Among the key types of Baking Soda Grinders are the Pin Mill and the ACM Mill, each with its own unique structure, working principles, and features. In this article, we will delve into these two machines, shedding light on their design, operational methods, and advantages.

The YINDA YDWS series Baking Soda Grinder Pin Mill



Baking Soda Powder Size: 20-120 mesh

baking soda grinder (1)

YINDA YDWS series baking soda grinder single pin mill

https://www.yindamachinery.com/pin-mill/

baking soda grinder (2)

YINDA YDWS series baking soda grinder split pin mill set

https://www.yindamachinery.com/cyclone-pin-mill-with-dust-collector/

Structure: The Pin Mill, also known as a “centrifugal impact mill,” consists of a cylindrical casing with a set of closely spaced pins or hammers mounted on a rotor inside, the cyclone separator discharge port, the pulse dust free collector, the centrifugal fan, and the electric control box. The rotor is typically powered by an electric motor. The grinding chamber and rotor are designed in such a way that the pins or hammers rotate at high speeds, creating a centrifugal force that forces the material to the periphery of the chamber.

Working Principle: The YINDA YDWS series Baking Soda Grinder Pin Mill operates on the principle of impact grinding. When the motor drives the rotor to spin rapidly, the pins or blades impact the material fed into the grinder, shattering it into smaller particles. The centrifugal force ensures that these particles are propelled outward, further reducing their size as they collide with the pins, chamber walls and the inner filter screens. The final product is collected through an outlet, while any oversized particles are returned for further grinding.

Features:

  1. High-Speed Operation: The YINDA YDWS series Baking Soda Grinder Pin Mill operates at high speeds, making it efficient for fine grinding tasks.
  2. Uniform Particle Size: It produces consistent particle sizes, crucial for applications like baking soda production.
  3. Easy Maintenance: Its simple design makes it relatively easy to clean and maintain.
  4. Versatility: The YINDA YDWS series Baking Soda Grinder Pin Mill is suitable for a wide range of materials, including baking soda, spices, and pharmaceuticals.
  5. Technical parameter for reference

baking soda grinder (3)

The YINDA YDWF series Baking Soda Grinder ACM Mill (Air Classifier Mill)

Baking Soda Powder Size: 120-300 mesh

baking soda grinder (4)

YINDA YDWF series Baking Soda Grinder ACM Mill

Structure: The YINDA YDWF series Baking Soda Grinder ACM Mill is a more complex machine compared to the Pin Mill. It consists of a grinding chamber which includes a rotor blade, an air classifier wheel, and a guide ring, the cyclone dust-free system, the centrifugal fan and the electric control box.

Working Principle: The YINDA YDWF series Baking Soda Grinder ACM Mill combines grinding and air classification. Material is fed into the grinding chamber, where the rotor assembly grinds it into fine particles. Simultaneously, air is introduced into the system, and the air classifier separates the finer particles from the coarser ones based on their size and density. The fine particles are collected as the final product, while the larger particles are recirculated for further grinding.

Features:

  1. Precise Particle Control: The YINDA YDWF series Baking Soda Grinder ACM Mill offers exceptional control over particle size distribution, ensuring uniformity in the final product.
  2. Low Heat Generation: Its air classification system minimizes heat generation during grinding, preserving the quality of heat-sensitive materials like baking soda.
  3. Dust-Free Operation: The ACM Mill is designed to minimize dust emissions, enhancing workplace safety.
  4. Wide Application Range: It can handle a variety of materials, making it suitable for industries beyond food processing, including chemicals and pharmaceuticals.
  5. Technical parameter for reference

baking soda grinder (5)

Baking soda is a staple ingredient in countless products, and achieving the desired particle size and quality is paramount. According to the target different powder sizes, the YINDA YDWS series Baking Soda Grinder Pin Mill and YINDA YDWF series Baking Soda Grinder ACM Mill are two essential tools in the production process, each offering distinct advantages. While the Pin Mill is known for its simplicity and high-speed operation, the ACM Mill combines grinding and air classification for precise control and minimal heat generation.

Yinda Machinery will help you choose the Baking Soda grinder that best suits their specific needs, ensuring the consistent quality of baking soda and other products. So welcome to contact us to get a detailed solution.

dennie@yindamachinery.com

yindachina@gmail.com

Tel(WhatsApp): +86 13914192807

Welcome to browse our website to fine your desired products.

www.yindamachinery.com

Yinda Machinery is always here to help you make the most suitable solution to achieve the most effective powder results.

Other Products We Can Help You With powder handling systems:

baking soda grinder (6)

YINDA YDGS series herb hammer mill

https://www.yindamachinery.com/hammer-mill-grinder/

baking soda grinder (7)

YINDA YDLH series ribbon blender machine

https://www.yindamachinery.com/ribbon-blender/

baking soda grinder (8)

YINDA YDV series V cone mixer

https://www.yindamachinery.com/v-mixer/

baking soda grinder (9)

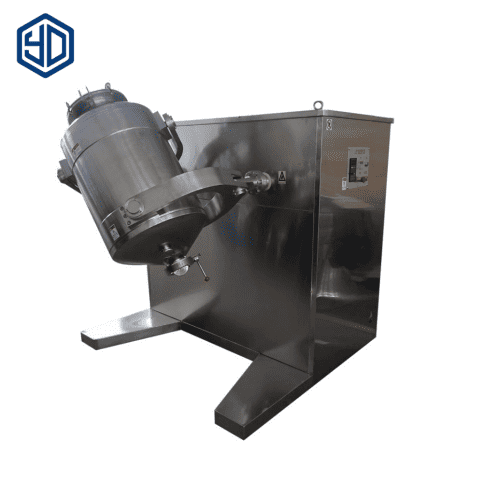

YINDA YDSW series 3D mixer
