It is widely applicable for foodstuff industry, pharmaceutical industry, chemical industry and etc such as corn, rice, wheat, cassava, sugar, salt, red chili, pepper, pimento, coriander, cumin, cinnamon, star anise, celery seed, ginger, licorice; rice, chaff, corn, sweet potato bran, cocoa bean, coffee, etc and relative product.

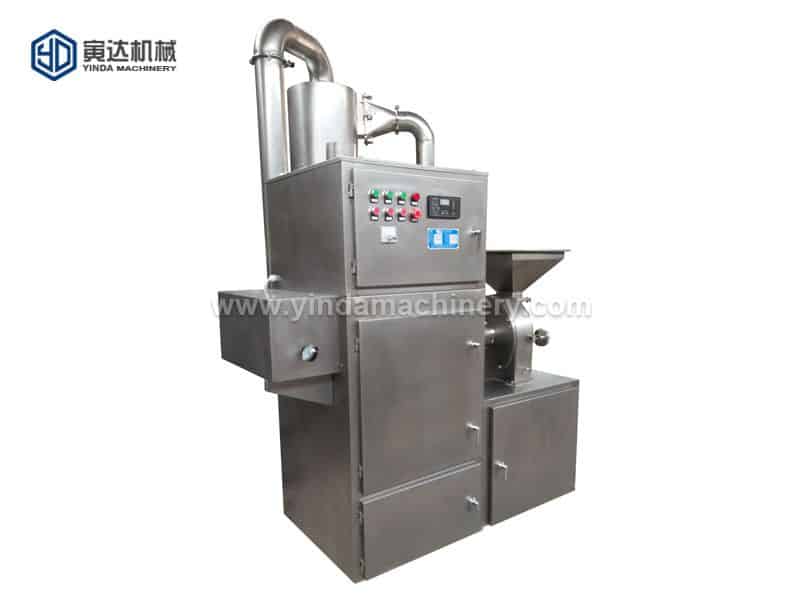

Yinda cyclone gains flour mill makes use of the high-speed relative movement of the movable fluted disc and the fixed fluted disc to crush the material through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the material.
- Price Term: FOB/CIF/EXW
- Package: Wooden case or according to customer request
- Delivery Time: 25-35 working days
- Transports: LCL/FCL
- Shipment Port: Shanghai Port
- Origin Of Place: Wuxi City
- Warranty: 12 Months
- Introduction
- Specifications
| Model | YDWS-20 | YDWS-30 | YDWS-40 | YDWS-60 | YDWS-80 | YDWS-100 |
| capacity(kg/h) | 20-200 | 30-300 | 40-500 | 200-1200 | 300-1500 | 600-3000 |
| Spindle speed(r/min) | 4500 | 3800 | 3600 | 2600 | 2000 | 1600 |
| input size(mm) | ≤10 | ≤10 | ≤10 | ≤12 | ≤ 15 | ≤ 15 |
| output size(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| crushing motor(kw) | 4 | 5.5 | 7.5 | 18.5 | 37 | 45 |
| Cyclone collector motor(kw) | 2.2 | 3 | 4 | 11 | 18.5 | 22 |
| overall size of main grinding(mm) | 600×600×1200 | 650×650×1350 | 750×750×1400 | 1000×800×1600 | 1200×1000×1800 | 1500×1300×1950 |

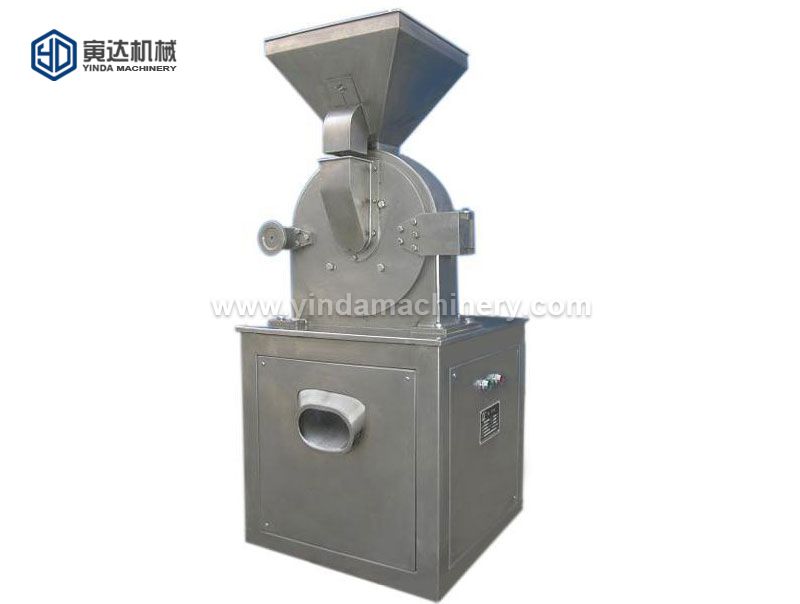

Hot-selling Equipments For Your Powder Processing Task
Cyclone Gains Flour Mill For Your Powder Processing Task:

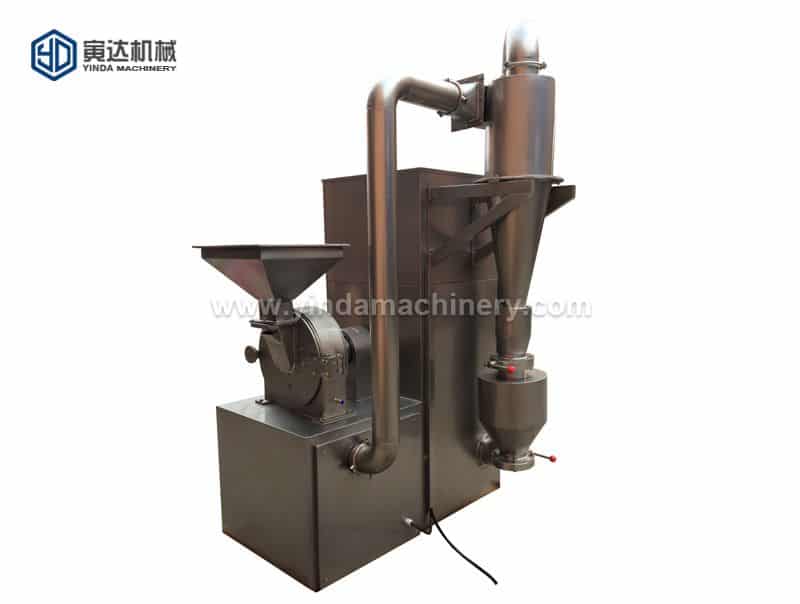

Since it features a simple structure, firm and stable operation and good crushing effect, the comminuted material can be discharged directly from the grinding chamber of the host machine and the desired granule size can be obtained by installing screens with different apertures, and the dust is filtered and recovered by dust collector through a bag.
The inner surface of the enclosure becomes smooth through processing, thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.
Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production and can improve the utilization rate of material and reduce the cost of the enterprise, thus reaching the international advanced level.
1.Benefits of Cyclone Gains Flour Mill:
● Simple structure in linear type, easy for installation, operation, and clean.
● With water cooling jacket around the grinding chamber and bearing.
● cyclone gains flour mill has different kinds of knives to let you choose different kinds of material.
●Equipped with a cyclone separator and a collector, so there is no powder flying during production. The dust collection bag can effectively collect the fine powder in the air current so as to meet the requirements for cleanness and environment protection in a waste gas discharge.
●The fine powder collected by the dust collecting bag can be effectively recycled, thus the material losses are reduced.
2.Detailed Images of Cyclone Grains Flour Mill:
2.1 Grinding Chamber:
●SUS 304 material based on GMP standard
●easy to replace the screen
●easy for daily deep clean
2.3 Water Cooling System:
● energy-saving circulating water systems
● Used to cool the high temperature caused by the high-speed rotation of the bearings to extend the life of the machine.
