Fitz mill
Yinda is one of the best Fitz mill manufacturer&supplier in China. If you are looking for Fitz mill, you can reply on us.
Fitz mills are a type of hammer mill that uses comminution to reduce the size of particles. Fitz mills use much higher tip speeds than do other mills, such as ball mills and jet mills. This results in a greater amount of shear and heat being generated between the particles themselves. Fitz mills are used in a wide variety of applications, including the size reduction of materials for food, pharmaceuticals, and chemicals. Fitz mills can also be used for grinding and pulverizing. Fitz mills typically use interchangeable screens or sieves to achieve the desired particle size distribution. Fitz mills are named after their inventor, John Fitz, who patented the first Fitz mill in 1834.
Description & application

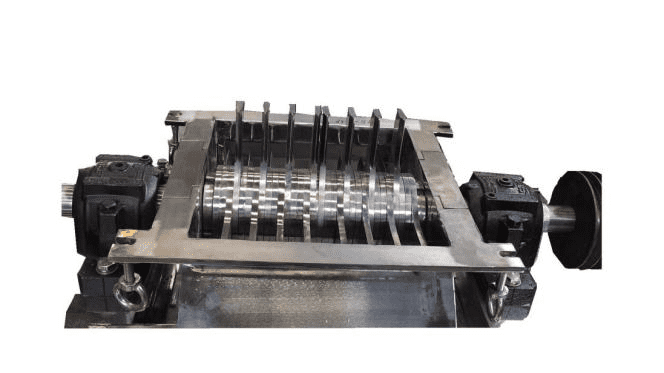

YDGS fizt mill is composed of hopper, crushing bin, discharge port and motor. The machine adopts impact type blades, and the blades can be replaced on both sides. The material enters the crushing bin through the hopper and is crushed by the shearing motion of the rotating shaft and the high speed operation of the blades, with a customizable size screen to obtain a uniform powder, which is finally discharged from the discharge port. This machine can also choose various shapes and sizes of blades according to different materials, fully adapt to the diversity of materials.
YDGS fitz mill is designed according to GMP requirements and is widely used in pharmaceutical, chemical, food and other industries.
Advantage
This machine has simple structure, easy operation, low maintenance cost and low noise.
It has good crushing effect, low energy consumption, user-friendly, solid shape and long service time.
Technical Data:
Model | YDGS-8 | YDGS-16 | YDGS-32 |
Motor power (kw) | 3 | 7.5 | 11 |
Production capacity (kg/h) | 10-100 | 50-300 | 100-500 |
Spindle speed(r/min) | 4000 | 4000 | 4000 |
Feeding size（mm） | ≤ 30 | ≤30 | ≤ 30 |
Finished size (mesh)
| 20-120 | 20-120 | 20-120 |
Dimension（mm）
| 800×500×1250 | 900×660×1350 | 1000×750×1650 |
