IBC bin
Yinda is one of the best IBC bin manufacturer&supplier in China. If you are looking for IBC bin, you can reply on us.
The storage equipment in the mechanized system of bulk material handling, mainly plays the role of intermediate storage, system buffer and balanced operation. The silo device consists of silo, feeding and discharging components.
Application:
- IBC filling system
- Granulation system
- Powder blending system
- Bio-pharmaceuticals
- Tableting and packaging system
Advantage
- Our IBC bin, whether 200 liter or 2000 liter, have no dead space for easy cleaning to ensure that the IBC binsdo not cause cross contamination.

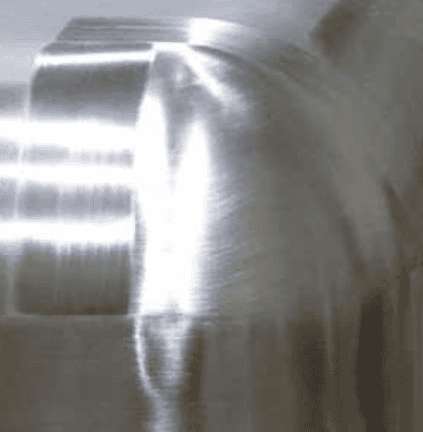

- Both internal and external welds are ground smooth and flush with the surface of the plate.
- Our high quality welds complete the appearance after grinding and polishing.

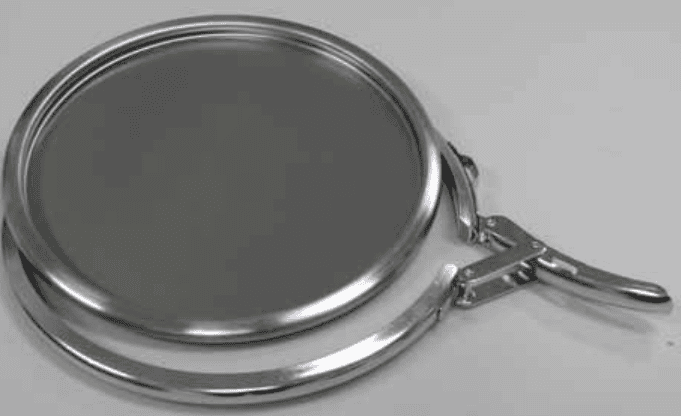

- For the pharmaceutical industry, we generally use our lightweight stamped cover system, which is easy to remove and clean and weighs very little.
- Clamping is made easy by an integral eccentric clamping ring with safety anti-tamper lock.
- The IBC bin is made of fully enclosed tubes and is supplied with round vertical legs or square tubes and white recessed plastic feet, so the floor is not damaged during handling.



Technical Data:
Model | Main structure dimensions | volume | Wall thickness | ||||
H1 | H2 | W | D | DN | L | t | |
YDIBC-200 | 1097 | 158 | 594 | 100 | 150 | 200 | 2.5 |
YDIBC-300 | 1168 | 204 | 794 | 125 | 200 | 300 | 2.5 |
YDIBC-400 | 1290 | 165 | 794 | 125 | 200 | 400 | 2.5 |
YDIBC-500 | 1331 | 229 | 994 | 125 | 200 | 500 | 2.5 |
YDIBC-600 | 1366 | 151 | 994 | 125 | 200 | 600 | 2.5 |
YDIBC-800 | 1545 | 118 | 994 | 125 | 200 | 800 | 2.5 |
YDIBC-1000 | 1586 | 165 | 1194 | 150 | 250 | 1000 | 2.5 |
YDIBC-1500 | 1868 | 99 | 1194 | 150 | 250 | 1500 | 3 |
YDIBC-2000 | 2238 | 113 | 1194 | 150 | 250 | 2000 | 3 |
