Industrial powder grinding machine can grind powder at 20-120mesh.
It is widely applied for the pharmaceutical industry, chemical industry, foodstuff industry and etc. Such as herbs&roots, Chinese medicine, agro products, herbal extracts, etc and relative product al have good grinding efforts. Yinda industrial powder grinding machine makes use of the high-speed relative movement of the movable fluted disc and the fixed fluted disc to crush the material through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the material.
- Price Term: FOB/CIF/EXW
- Package: Wooden case or according to customer request
- Delivery Time: 25-35 working days
- Transports: LCL/FCL
- Shipment Port: Shanghai Port
- Origin Of Place: Wuxi City
- Warranty: 12 Months
- Introduction
- Specifications
| Model | YDZS-300 | YDZS-400 | YDZS-500 | YDZS-600 | YDZS-700 |
| Capacity（kg/h) | 50-300 | 200-400 | 500-1000 | 600-2000 | 800-3000 |
| Speed of principal axis(r/min) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Input size(mm) | ≤10 | ≤10 | ≤12 | ≤15 | ≤15 |
| Output size (mesh) | 60-120 | 60-120 | 60-120 | 60-120 | 60-120 |
| Grinding motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower | 2.2 | 2.2 | 7.5 | 15 | 18 |
| Discharge motor（kw） | 0.37 | 0.75 | 0.75 | 0/75 | 1.1 |
| Size (mm) | 1300×750×1850 | 1350×800×1920 | 2200×980×2000 | 2200×1100×2400 | 2400×1300×2400 |
Hot-selling Equipments For Your Powder Processing Task
Industrial Powder Grinding Machine For Your Powder Handling Task:
Since it features a simple structure, firm and stable operation, and good crushing effect, the comminuted material can be discharged directly from the grinding chamber of the host machine and the desired granule size can be obtained by installing screens with different apertures, and the dust is filtered and recovered by pulse dust collector through pulse bags. In addition, the inner surface of the enclosure becomes smooth through processing, thus changing the powder residual phenomenon due to the coarse inner surface of the previous models. Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production and can improve the utilization rate of material and reduce the cost of the enterprise, thus reaching the international advanced level.
Benefits of Yinda industrial powder grinding machine:
●Dust-free system during the whole powder processing
●fine powder can be effectively recycled
● Simple structure in linear type, easy for installation, operation, and clean.
● With a water cooling jacket around the grinding chamber and bearing.
● Yinda industrial pharmaceuticals powder grinding machine has different kinds of the knife to let you choose for different kinds of material.
● Different types of dust collectors can be equipped to avoid dust spilling powder flying during production.
● Air cooling device can be equipped to keep temperature remains normal, so the material color and nature won’t change.
Detailed images of Industrial powder grinding machine :

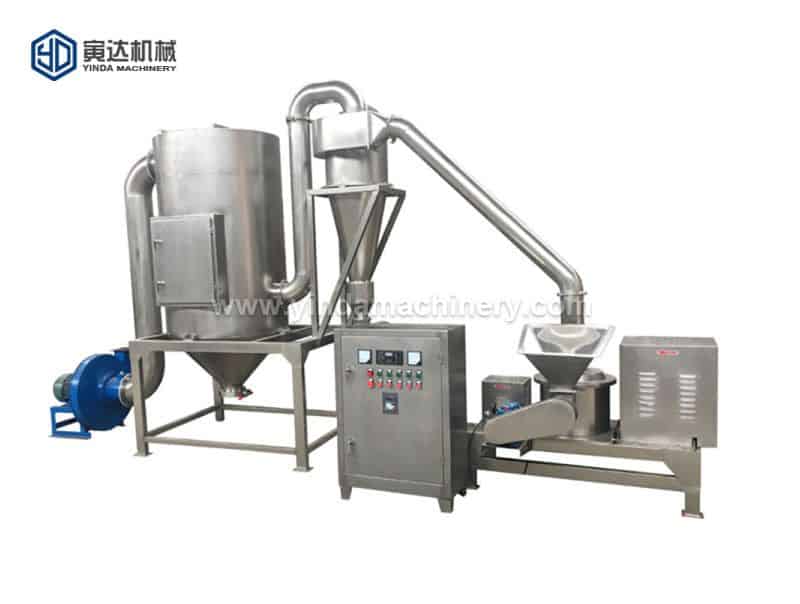

It is made up of main chamber, cyclone discharge, dust collector, blower and control box.
Cyclone Discharge Valve:
●Cyclone can separate dust from powder(granules).
●The rotary valve makes powder discharge speed even.
●The rotary valve is also made of stainless steel and based on the GMP standard.
●Quick-detachable Construction to Make quick and convenient for clean and installation.
Pulse Dust Collecting box:
●Dust is collected inside the dust collecting box.
●Inside the box, there are many dust collecting bags, the number of dust boxes is precisely calculated according to the filter area. and the bag frames are also made of stainless steel and can be disassembled easily.
●With pulse-jet cleaning, dust can be filtered and collected very conveniently.
Eu Brand components guarantee quality performance and minimize broken-down time.
