Oscillating granulator
Yinda is one of the best oscillating granulator manufacturer&supplier in China. If you are looking for oscillating granulator, you can reply on us.
An oscillating granulator is a type of granulator that uses oscillating motion to crush and grind materials. The oscillating motion produces a high degree of force that helps to break down the particles into a uniform size. The granulator can be used for a variety of materials, including metals, plastics, and even food products. The oscillating granulator is a versatile tool that can be used in a wide range of industries, from manufacturing to food processing.
Application:
This machine is widely used in the pharmaceutical, chemical, food and other industries, to make moist powder materials into particles, can also crush the dry lump material.
Details:
By mechanical transmission, extruding the material from a screen into pellets or crushing and granulating.
The oscillating granulator is a popular type of granulator, mainly by reducing the size of the material or forming the desired particle size from moist powder material, also suitable for crushing dry lumpy materials, sensitive powders and granules in the pharmaceutical, chemical and food industries.

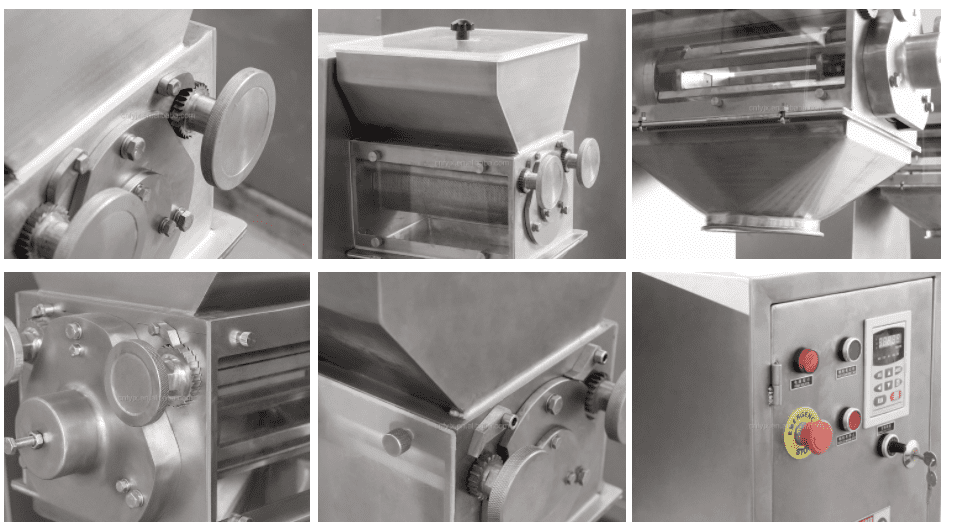

The oscillating granulator has a rotor which oscillates on a horizontal axis. The bottom of the rotor is fitted with a sieve that meets the powder size requirements. This sieve can be easily removed and reassembled and the tension can be adjusted. The material is loaded through the inlet and falls on the rotor blades. As it moves from one side to the other, the material is broken up by a set of oscillating rotors. The sharp edges on the rotor, the oscillating motion of the rotor and the subsequent pressure of the material on the screen cause the granular material to undergo size reduction as it is pushed through the screen. (Screens can be customized).
The drive system is completely enclosed in the body for high safety. YDYK series oscillating granulator is made of high quality stainless steel 304, which is safe and hygienic and ensures efficient quality of the finished product and meets GMP standards.
Advantage:
- Machine design is GMP compliant to ensure safe production compliance of materials
- All parts in contact with the product are stainless steel 304 or 316L, non-contact parts at least SUS304
- Suitable for wet and dry materials, uniform granulation
- Simple structure, easy to operate and move, and easy to clean, saving manpower
- Inline pelletizing, simple and easy to understand principle, user friendly.
- Zero dust, low maintenance cost.
Technical Data:
| Model | YDYK-100 | YDYK-160 | YDYK-250 | YDYK-300 |
| Productive capacity(kg/h) | 30-100 | 100-300 | 150-400 | 200-600 |
| Power of motor(kW) | 1.1 | 2.2 | 4 | 5.5 |
| Revolution of roller(rpm) | 55 | 55 | 55 | 55 |
| Swing angle(。) | 360 | 360 | 360 | 360 |
| Diameter of roller(mm) | φ120 | φ160 | φ250 | φ300 |
| Overall dimensions(mm) | 700×400×1050 | 1000×800×1300 | 1200×950×1400 | 1300×1050×1500 |
| Weight(kg) | 280 | 380 | 540 | 890 |
Yinda Imported Spare Parts From Global Industry Brand Likes:
