Ribbon Mixer Machine is widely used in food, medicine, chemical, plastic, material mixing, especially suitable for viscous or agglomerate mixed powder material the material, adding more liquid and powder material (or paste material) mixed.
This mixer can not only mix the powder or particles with good fluidity but also the materials with not good fluidity, such as the material with a little water, sugary, or a little sticky.
- Price Term: FOB/CIF/EXW
- Package: Wooden case or according to customer request
- Delivery Time: 25-35 working days
- Transports: LCL/FCL
- Shipment Port: Shanghai Port
- Origin Of Place: Wuxi City
- Warranty: 12 Months
- Introductions
- Specifications
| Model | YDLH-100 | YDLH-200 | YDLH-500 | YDLH-1000 | YDLH-1500 | YDLH-2000 |
| Full volume（m3） | 0.1m3/100L | 0.2m3/200L | 0.5m3/500L | 1m3/1000L | 1.5m3/1500L | 2m3/2000L |
| Working volume(L) | 60 | 120 | 300 | 800 | 1200 | 1600 |
| Mixing speed(rpm) | 53 | 53 | 53 | 42 | 42 | 42 |
| Mixing motor(kw) | 3 | 4 | 7.5 | 11 | 11 | 15 |
| Overall dimension(mm) | 1190*740*770 | 1550*1005*935 | 1972*1142*1300 | 2340*1437*1500 | 3180×1020×1550 | 3310×1120×1640 |
| Weight(kg) | 330 | 720 | 980 | 1700 | 1800 | 2100 |
Hot-selling Equipments For Your Powder Processing Task

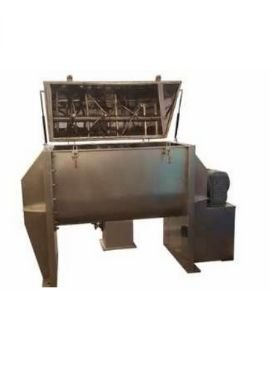

1-Ribbon Mixer Machine For Your Powder Solution
It comprises U-shape barrel, transmission parts, and ribbon agitating blades which usually have double or triple layers with outside screw gathering material from side to center, and inside screw transmitting the material from center to sides to form convection.
It can not only mix the powder or particles with good fluidity but also the materials with not good fluidity, such as the material with a little water, sugary, or a little sticky.
2-Detailed of Ribbon Mixer Machine:
2-1 Pneumatic valve for discharge:
●Completely discharge
●No dead space
2-2 We set the mesh enclosure device above the U-shaped tank to prevent the staff from being injured when adding materials.
2-3 Double layer in the inner tank.
●304SUS material, mirror polished
●mirror polished inner tank avoid the material accumulation
●Uniform mixing and shorter mixing time via positive agitation technology.
3. Highlight the Benefits of Ribbon Mixer Machine:
- The Ribbon Blender is adaptable to batch or continuous mixing.
- Mixing Suitable to mix solid/Solid, Solid/liquid material.
- HEATING or COOLING JACKET as per process requirements.
- Constructed of SS 316, SS 304 and Carbon Steel.
- Exterior finished can be a professional looking mat finish or a mirror finish.
