Yinda stainless steel hammer mill is our smallest type, is widely used in industries of medical, chemical, foodstuff, etc, if you are looking for small chili powder grinder, spice grinder, herb grinder, grain flour grinder, spice grinding mill...etc, YDGS series small hammer mill is the most suitable.
- Price Term: FOB/CIF/EXW
- Package: Wooden case or according to customer request
- Delivery Time: 25-35 working days
- Transports: LCL/FCL
- Shipment Port: Shanghai Port
- Origin Of Place: Wuxi City
- Warranty: 12 Months
- Introduction
- Specifications
| Model | YDGS-200 | YDWS-250 | YDWS-300 | YDWS-350 |
| Capacity（kg/hr) | 5-50 | 20-100 | 30-200 | 40-300 |
| Speed of Principal axis(r/min) | 5900/8600 | 4200/6200 | 2600/5100 | 2200-4400 |
| Input Size(mm) | ≤10 | ≤10 | ≤10 | ≤12 |
| Output Size(mesh) | 60-120 | 60-120 | 60-120 | 60-120 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Size(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
Hot-selling Equipments For Your Powder Processing Task
Stainless Steel Hammer Mill For You Powder Processing Task:

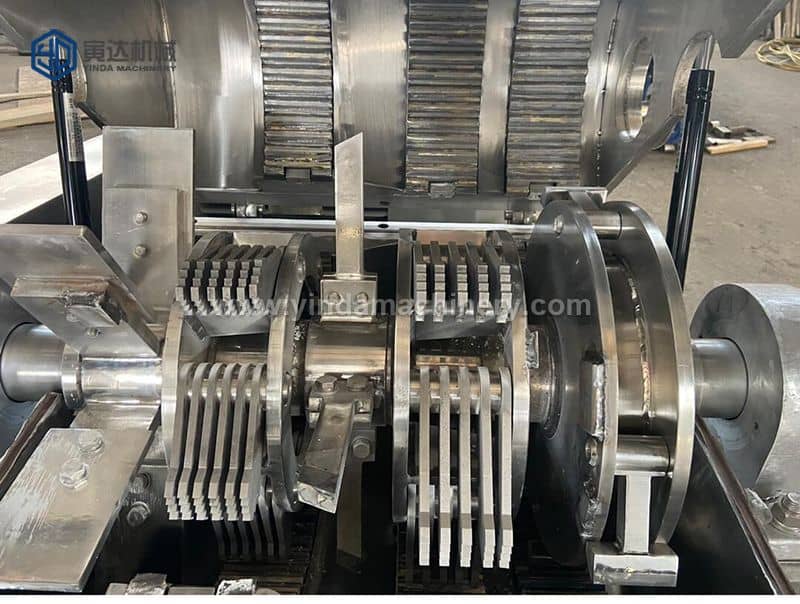

Yinda stainless steel hammer mill is composed of feeding hopper, grinding part, discharging part. It can make use of the high-speed relative movement of the movable fluted disc and the fixed fluted disc to crush the material through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the material.
In addition, the inner surface of the enclosure becomes smooth through processing, thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.
As a result, the production of food, medicine, and chemical products can better conform to the state standard and the GMP requirements.
Highlight Benefits of Stainless Steel Hammer Mill:
● Simple structure in linear type, easy for installation, operation, and clean.
● Stable running and convenient moving.
● Low Noise, low consumption, High grinding efficiency.
