V Shape Blender are used for two or more than two kinds of dry granules or powder materials in the pharmaceutical, food, chemical, or other related industries.
- Price Term: FOB/CIF/EXW
- Package: Wooden case or according to customer request
- Delivery Time: 25-35 working days
- Transports: LCL/FCL
- Shipment Port: Shanghai Port
- Origin Of Place: Wuxi City
- Warranty: 12 Months
- Introductions
- Specifications
- Video

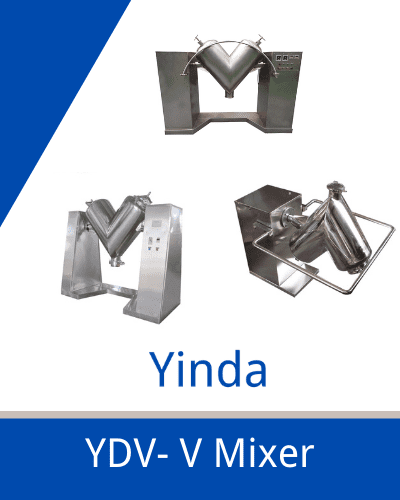

V Cone Blender is composed of two feed inlets, mixing barrel, discharge valve, and electronic control parts.
Designed according to GMP standard and wholly made of stainless steel. The power of the motor is transmitted to the reducer through the belt and the reducer to the V-barrel through the coupling. Make the V-type barrel run continuously, and drive the material inside the barrel to mix up, down, left and right.
Mixing machine body is welded by two-cylinder V shape, inlet for a fast locking device, the discharge port is a manual butterfly valve, operation simple and quick. Fixed forced stirring shaft by sanitary stainless steel seamless steel pipe production, the main body is fixed on the two ends of the cylinder sleeve top, through the relative motion and the mixing cylinder, so that the material has forced turnover effect, improve the mixing uniformity.
| Model | YDV-180 | YDV-300 | YDV-500 | YDV-1000 | YDV-1500 | YDV-2000 |
| volume(L) | 180 | 300 | 500 | 1000 | 1500 | 2000 |
| Production Capacity(kg/patch) | 40 | 70 | 120 | 250 | 360 | 450 |
| Mixing time(min) | 4-8 | 4-8 | 6-10 | 6-10 | 12-18 | 12-18 |
| Barrel speed(r/min) | 12 | 12 | 12 | 12 | 12 | 12 |
| Motor power(kw) |
Main Motor:1.1kw
Forced agitator:0.75kw |
Main motor:1.5kw
Forced agitator motor:1.1kw |
Main motor2.2kw
Forced agitator motor:1.5kw |
Main motor:4kw
Forced agitator motor:3kw |
Main motor:5.5kw
Forced agitator motor:4kw |
Main motor:7.5kw
Forced agitator motor:5.5 |
| Material Thickness（mm） | 3mm | 4mm | 5mm | 6mm | ||
| Distance between shaft and inner wall | 1.5mm | 3mm | ||||
| Model of auxiliary vacuum pump(option) | Manual feeding | Manual feeding | WL50 | WL50 | WL50 | WL50 |
| Cross rotation height (mm) | 1870 | 1870 | 2450 | 2940 | 2940 | 3670 |
| Overall dimension（mm） | 2110*600*1675 | 2000×750×1650 | 2380×1100×1950 | 2900×1300×2500 | 3390×1350×2900 | 3700×1600×3100 |
| Weight(kg) | 290 | 380 | 550 | 700 | 900 | |
Hot-selling Equipments For Your Powder Processing Task
Detail images of V Cone Blender:
Inner Agitator:
●304 SUS steel material
●uniform mixing and shorter mixing times via positive agitation technology.
Operation Panel:
●button Control.
●PLC control for option.
Manual Butterfly Valve for discharge:
●prolong service life
●improve mixed uniformity
Highlight The Benefits of V Shape Blender:
1) High mixing efficiency.
2) Free of dead corner.
3) even mixing.
4) Safty bar can be added.
5) Forced agitator can be added.
